KLB2500-6 Steel Plate Wheel Blasting Machine

Place Of Origin: China
Working Type: Wheel Blasting
Usage: blast cleaning
Blasting Abrasive： Steel Shots & Grits
Product description：KLB2500-6 steel plate wheel blasting machine from Kholee blast is designed to clean steel plate upto 2500mm in width. By blasting, it can remove rust and scale from the surface of steel plate, beam, p
INQUIRY

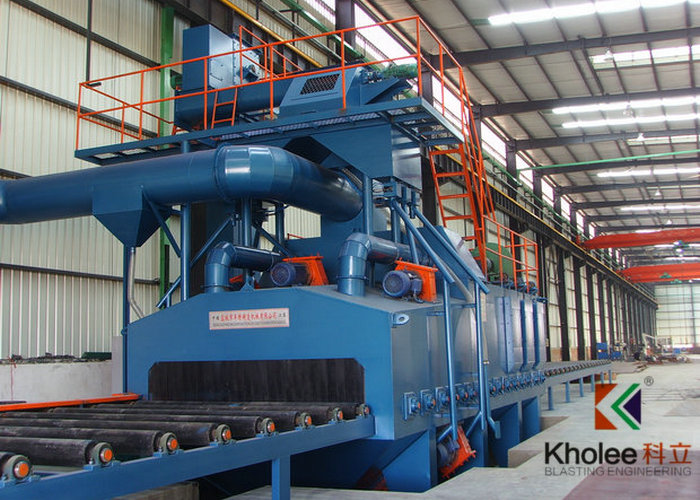

KLB2500-6 wheel blasting machine is used to clean steel plate upto 2500mm in width, small size of beam, pipe, angle steel etc. It adopts advanced blasting turbine to do blasting to all the surface of steel and remove rust, oxide layers, welding slag. After blasting, it gets clean Sa2.5 surface quality with certain roughness which improves the paint film adhesion, anti-fatigue and anti-corrosion, prolongs the service life of steel. It is widely used in the industry of ship building, engineering machinery, pressure vessel, bridge construction etc.

The equipment is comprised of in-feeding roller conveyor, shot blasting chamber, blasting turbine, shots recycle system, shots clean off system, dust removing system, out-feeding roller conveyor and electrical control system etc.

Model	KLB2500-6 Steel Plate Wheel Blasting Machine
Steel Plate Size	(4~60) × 2500 × 12000mm
Working Speed	0.5~3.0 m/min
Loading Capacity	1.5 t/m
Blasting Wheel	350 kg/min× 6
Abrasive Recycle	130 t/hr
Abrasive Clean Off	Scraper + Roller Brush + High Pressure Fan
De-Dust Air Flow	33500 m3/hr
Surface Quality After Blasting	Sa 2.5 GB8923-88(ISO8501)
Roughness After Blasting	Ra20~75
Dust Emission Density	80 mg/m3
Noise Level	≤85 dB
Size of Equipment	Refer to drawing
Total Power	~ 240 kw
