KLB2000-6 Steel Plate Shot Blasting Machine

Place Of Origin: China
Working Type: Wheel Blasting
Usage: blast cleaning
Blasting Abrasive： Steel Shots & Grits
Product description：KLB2000-6 steel plate shot blasting machine / wheel blast machine from Kholee blast is designed to clean steel plate upto 2000mm in width, widely used in the industries of shipbuilding, fabrication, m
INQUIRY

KLB2000-6 Shot blasting machine is used to clean steel plate upto 2000mm in width, small size of beam, pipe, angle steel etc. It adopts advanced blasting turbine to do blasting to all the surface of steel and remove rust, oxide layers, welding slag. After blasting, it gets clean Sa2.5 surface quality with certain roughness which improves the paint film adhesion, anti-fatigue and anti-corrosion, prolongs the service life of steel. It is widely used in the industry of ship building, engineering machinery, pressure vessel, bridge construction etc.

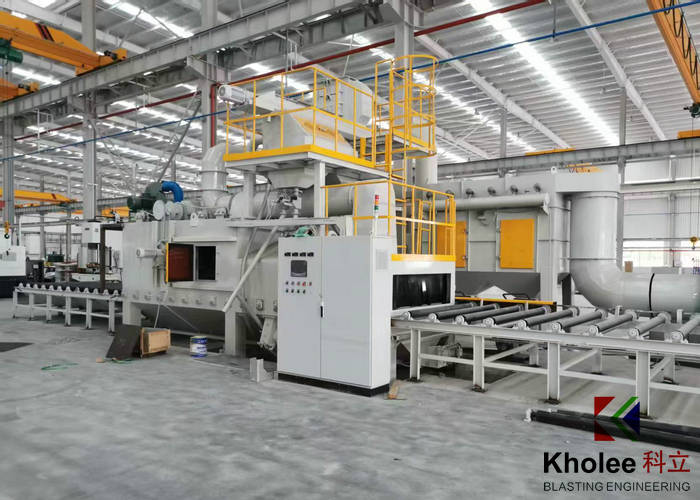

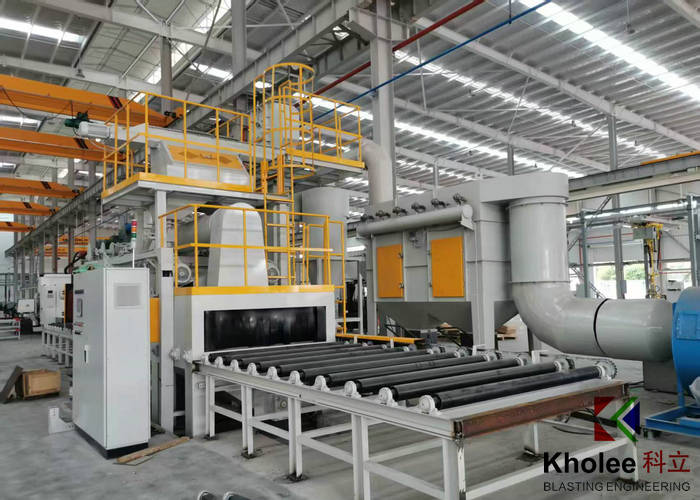

The equipment is comprised of in-feeding roller conveyor, shot blasting chamber, blasting turbine, shots recycle system, shots clean off system, dust removing system, out-feeding roller conveyor and electrical control system etc.

Model	KLB2000-6 Steel Plate Shot Blasting Machine
Steel Plate Size	(4 - 50) × 2000 × 12000mm
Working Speed	0.5-3.0 m/min
Loading Capacity	1.0 t/m
Blasting Wheel	250 kg/min× 6
Abrasive Recycle	90 t/hr
Abrasive Clean Off	Scraper + Roller Brush + High Pressure Fan
De-Dust Air Flow	25,600 m3/hr
Surface Quality After Blasting	Sa 2.5 GB8923-88(ISO8501)
Roughness After Blasting	Ra 20-75
Dust Emission Density	80 mg/m3
Noise Level	≤85 dB
Size of Equipment	Refer to drawing
Total Power	- 187 kw
