KLY Steel Plate Shot Blasting Painting Machine

Place Of Origin: China
Working Type: Wheel Blasting & Painting
Usage: Remov Rust, Oxide Layers, Painting
Control Type: PLC
Product description：As a leading manufacturer, exporter and supplier of blasting painting equipment, Kholee Blast provides special proposal of steel plate shot blasting painting machine which is used to do blasting paint
INQUIRY

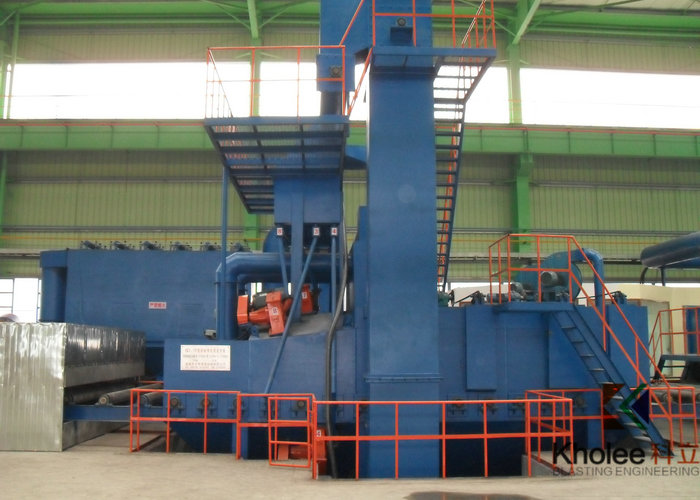

The equipment is mainly comprised of in-feeding roller conveyor, shot blasting chamber, painting spray booth, drying booth, out-feeding roller conveyor, dust removing system and electrical control system.

Working Principle:

The equipment is high efficiency continuous working production line. The steel plate will be delivered into shot blasting chamber and accept shot blasting from different blasting turbine, thus rust, oxide layers will be cleaned quickly and the surface quality can reach Sa2.5. During blasting, the mixture of Steel Shots and dust will be collected by screw conveyor to bucket elevator and then separator for recycle. The dust produced by blasting will be filtered by pulse jet dust collector and then discharge qualified air into high sky.

After shot blasting, the shots clean off system including scrapper, roller brush and high pressure air fan will clean the steel shots on the top surface of steel plate to make sure no steel shots on it. Then the steel plate will be delivered into painting spray booth for painting. After painting, the steel plate will be delivered into drying booth for drying. The drying booth has two type: electrical heating or oil/gas burning heating. After dying, the steel plate will be sent out to out-feeding roller conveyor.

Application: Shipbuilding & Shipyard | Marine Offshore Engineering | Pressure Vessel Manufacturing | Engineering Machinery Manufacturing | Petroleum Oil & Chemical Industry etc.

STEEL PLATE SHOT BLASTING PAINTING MACHINE
Model	KLY1500-4	KLY2000-6	KLY2500-6	KLY3000-6
Steel Plate Size (mm) Thick × Width × Length	(4~60)×1500 ×6000	(4~60)×2000 ×9000	(4~60)×2500 ×12000	(4~60)×3000 ×12000
Working Speed (m/min)	0.5~3.0
Shot Blasting Volume (kg/min)	290×4	250×6	290×6	360×6
De-dust Air Volume (m³/hr)	25600	25600	32500	32500
Surface Quality After Blasting	Sa 2.5 GB8923-88(ISO8501)
Roughness After Blasting	Ra20~75
Painting Type	Airless Painting Spray 45:1
Paint Film Thickness	15~45μm
Drying Temperature	45~70°C

STEEL PLATE SHOT BLASTING PAINTING MACHINE
Model	KLY3500-8	KLY4000-8	KLY4500-10	KLY5000-10
Steel Plate Size (mm) Thick × Width × Length	(4~60)×3500 ×12000	(4~60)×4000 ×12000	(4~60)×4500 ×12000	(4~60)×5000 ×12000
Working Speed (m/min)	0.5~4.0
Shot Blasting Volume (kg/min)	350×8	480×8	480×10	480×10
De-dust Air Volume (m³/hr)	39500	39500	48500	48500
Surface Quality After Blasting	Sa 2.5 GB8923-88(ISO8501)
Roughness After Blasting	Ra20~75
Painting Type	Airless Painting Spray 45:1
Paint Film Thickness	15~45μm
Drying Temperature	45~70°C

- Kholee Blast also designs and manufactures non-standard steel plate shot blasting painting machine according to clients’ requirements and work-pieces size.

- We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.
