KLB4000-8 Steel Plate Shot Blasting Machine

Place Of Origin: China
Working Type: Wheel Blasting
Usage: blast cleaning
Blasting Abrasive： Steel Shots & Grits
Product description：As a manufacturer of wheel blast equipments, Kholee Blast designs KLB4000-8 steel plate shot blasting machine which can clean steel plate upto 4000mm in width. By blasting, it can remove rust, oxide l
INQUIRY

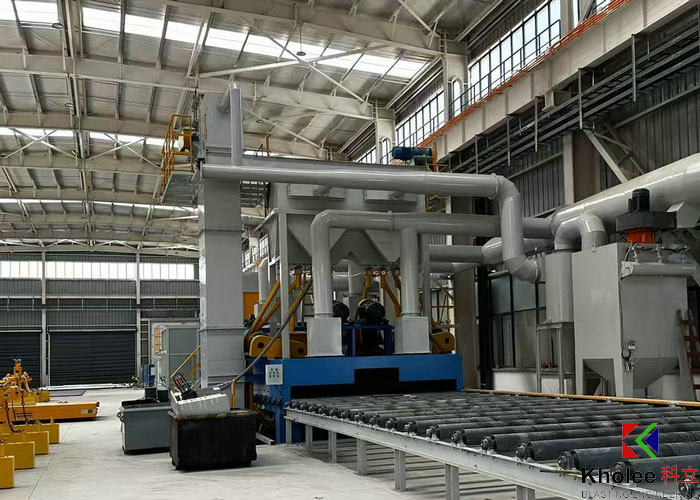

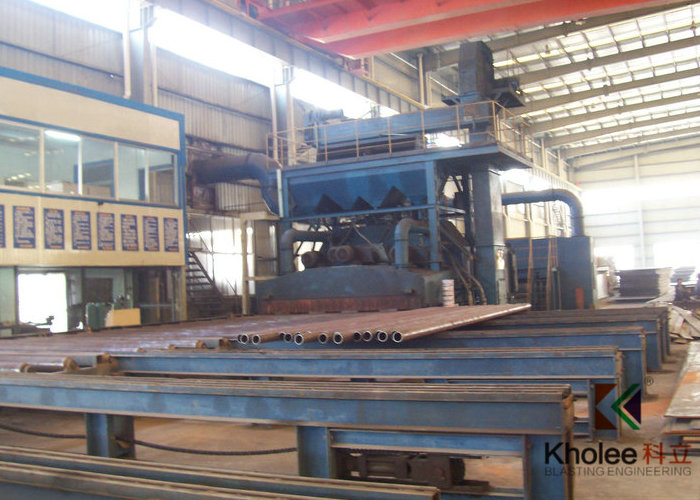

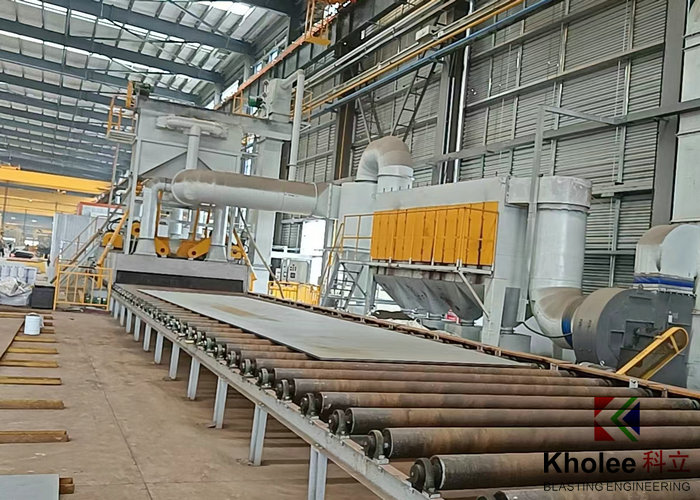

KLB4000-8 Steel plate Shot Blasting Machine is used to clean steel plate upto 4000mm in width, small size of beam, pipe, angle steel etc. It adopts advanced blasting turbine to do blasting to all the surface of steel and remove rust, oxide layers, welding slag. After blasting, it gets clean Sa2.5 surface quality with certain roughness which improves the paint film adhesion, anti-fatigue and anti-corrosion, prolongs the service life of steel. It is widely used in the industry of ship building, engineering machinery, pressure vessel, bridge construction etc.

The equipment is comprised of in-feeding roller conveyor, shot blasting chamber, blasting turbine, shots recycle system, shots clean off system, dust removing system, out-feeding roller conveyor and electrical control system etc.

Model	KLB4000-8 Steel Plate Shot Blasting Machine
Steel Plate Size	(4~60) × 4000 × 12000mm
Working Speed	0.5~3.0m/min
Loading Capacity	2.0t/m
Blasting Wheel	480 kg/min × 8
Abrasive Recycle	230 t/hr
Abrasive Clean Off System	Scraper + Roller Brush + High Pressure Fan 15kw×2
De-Dust Air Flow	42600 m3/hr
Surface Quality After Blasting	Sa 2.5 GB8923-88(ISO8501)
Roughness After Blasting	Ra20~75
Dust Emission Density	80mg/m3
Noise Level	≤85dB
Size of Equipment	Refer to drawing
Total Power	~ 370 kw
