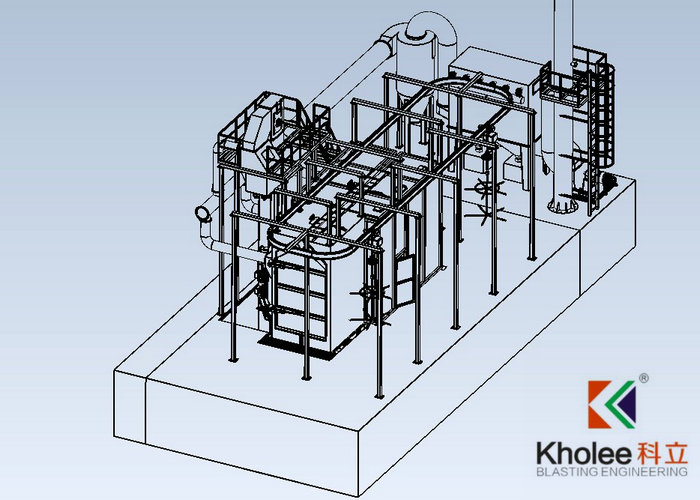

KL-H4MR2T1523 Hoist Pass Through Shot Blasting Machine

Place of Origin: China
Working Type:Wheel Blasting
Usage: Removing Rust & Oxide Layers
Control: PLC + Manual
Product description：KL-H4MR2T1523 Hoist Pass Through Shot Blasting Machine from Kholee Blast is used to clean rust, oxide layers from steel products by wheel blasting. It is widely used in the industries of engineering m
INQUIRY

KL-H4MR2T1523 Hoist Pass Through Shot Blasting Machine shot blasting machine is of single working station and hoist forward movement. It is used to clean the surface of medium and small size of castings, steel structures, welding structures and forgings etc. It is widely applied in the industries of foundry, building, chemical, motor and machine tools.

The aim of shot blasting is to remove rust or sand from castings, steel structures and intensify. It is the most reliable and economical method in the world. The characters are as follows:

- Improve anti fatigue of mechanic products and steel structures.

- Eliminate stress concentration.

- Prolong the service life.

- Optimize surface quality of workpieces.

- Improve clean effectiveness and reduce labor intensity.

- Reduce pollution to environment.

Size of Blasting Jobs
Max Size	Φ1,500×2,300mm
Max Weight	2,000KGS
Shot Blasting Chamber
Entry & Exit Open	W×H1,800×3,400
Size of Blasting Chamber	L×W×H2,500×2,200×3,600mm
Door Type	Pneumatic Auto Door
Blasting Chamber Protective	- Opposite of blasting turbine, two layers protection: First Layer is Mn13 steel plate, Thickness 10mm and Second Layer is Mn13 steel plate or Cr13 casting plate - Other parts of blasting chamber is protected by Mn13 plate or Cr13 casting plate - Door is protected by Mn13 steel plate 6mm
Belt Driven Blasting Wheel, 4 units
Model	KL360
Shots Flow	250 kg/min × 4
Power	15kw × 4
Hoist Monorail System - Closed Loop
Loading Capacity Per Hanger	2,000kgs
Hanger Quantity	5 pcs
Hoist Lifting Power	1.5 kw × 5
Lifting Speed	4.8m/min
Hoist Moving	0.55kw × 5
Move Speed	11m/min and 21m/min
Hanger Rotation	0.75kw
Productivity	3~10 minutes /hook
Self Rotation Power	0.75kw
Abrasive Recycle System
Recycle Capacity	60 t/h
Power	Portrait Screw Conveyor 4 kw Transverse Screw Conveyor 3kw Bucket Elevator 5.5kw Air Wash Type Separator 0kw
Pneumatic Shots Supply Valve
Compressed Air Pressure	0.4~0.6 Mpa
Quantity	4 pcs
Cleaning Chamber After Blasting
Size	L×W×H 4,500×2,200×3,600mm
Working Station	2 sets
Lights	LED lights, 100w - 6 pcs
Working Type	Air Blowing by Manual
Pulse Jet Type Dust Collector
Model	KL-DC-24
Cartridge Filter	Φ325 × 1100 mm
Cartridge Filter Quantity	24 pcs
Dust Cleaning Type	Pulse Jet
Dust Emission from exhausted air	≤30 mg/m³
Air Volume	25,600 m³/hr
Centrifugal Air Fan	22 kw
Quantity	1 Set
Electrical Control System
Voltage/Frequency	380V~415V/50Hz, 440V/60Hz
Operation Type	Manual + PLC control
Equipped with Famous Brand Elements Such as Schneider & CHINT, Mitsubishi	PLC, breaker, contactor, time relay, thermal relay, button, switch, limited switch etc.
Noise of Equipment	≤ 95dB
Total Power	About 110 kw
Overall Size of Machine	Approx. L 15,000 × W 7,500 × H 7,000mm - Without Dust Collector System
Total Weight of Equipment	Approx. 30 tons
