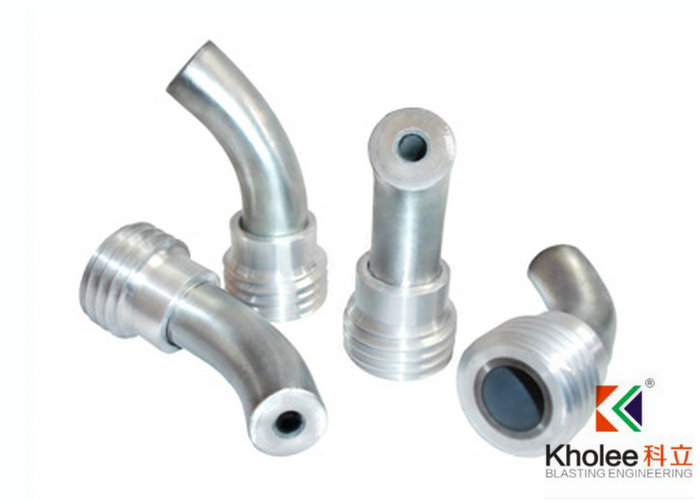

Curved Blasting Nozzles

Place Of Origin: China
Material: Tungsten Carbide
Product description：KHOLEE BLAST range of tungsten carbide curved blasting nozzles are suitable for special range of abrasive blasting applications. For more information, please email us kholeeblast@gmail.com
INQUIRY

KHOLEE BLAST range of tungsten carbide blast nozzles are general purpose, durable blast nozzles suitable for a wide range of abrasive blasting applications.

Specially designed as a cost effective nozzle, kholee Blast nozzles are available with either a 32mm diameter or 25mm entry. Customers can also specify the inserts, the size of Bore diameter and length which suit different purpose. To ensure optimum life, all Blast Nozzles should always be sued with the appropriate nozzle gasket.

All KHOLEE BLAST nozzles including the long life, a choice of fine thread (1-1/4”, 32mm) or the coarse contractor thread (2”, 50mm) which provides quick release from the nozzle holder and avoiding grit entrapment. Optional on Aluminum outer jacket and PU outer jacket which protects the Venturi or Straight bore nozzle insert from damage.

TC45 Series Nozzle
Model	Orifice		Length
TC45-5	8mm (5/16”)		130mm (5-1/8”)
TC45-6	9.5mm (3/8”)		130mm (5-1/8”)
TC45-7	11mm (7/16”)		130mm (5-1/8”)
Tungsten carbide curvo-blast nozzle, 45 degree angle, aluminum 1-1/4” thread and outer jacket, tungsten carbide liner.
TC45-50 Series Nozzle
Model		Orifice		Length
TC45-5/50		8mm (5/16”)		130mm (5-1/8”)
TC45-6/50		9.5mm (3/8”)		130mm (5-1/8”)
TC45-7/50		11mm (7/16”)		130mm (5-1/8”)
Tungsten carbide curvo-blast nozzle, 45 degree angle, aluminum 50mm (2”) contractor thread and outer jacket, tungsten carbide liner.
