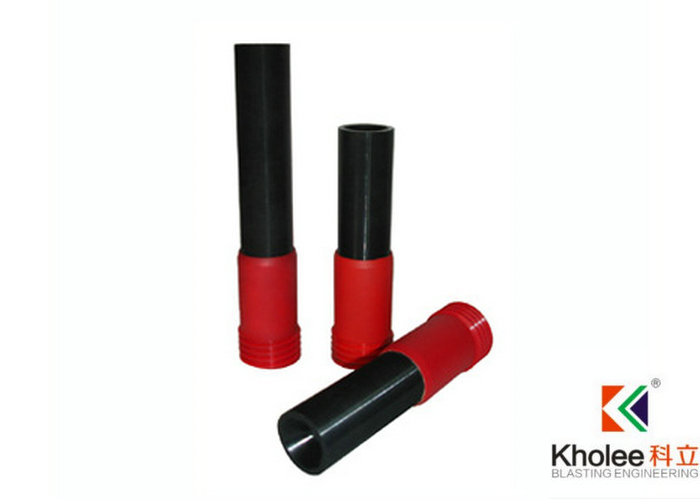

TLVW-NP Tungsten Carbide Long Venturi Blast Nozzle

Place Of Origin: China
Material: Tungsten Carbide
Product description：KHOLEE BLAST range of tungsten carbide long venturi blast nozzle with Nylon Thread, urethane Jacket are suitable for a wide range of abrasive blasting applications. Specially designed as a cost effect
INQUIRY

KHOLEE BLAST range of tungsten carbide blast nozzles are general purpose, durable blast nozzles suitable for a wide range of abrasive blasting applications.

Specially designed as a cost effective nozzle, kholee Blast nozzles are available with either a 32mm diameter or 25mm entry. Customers can also specify the inserts, the size of Bore diameter and length which suit different purpose. To ensure optimum life, all Blast Nozzles should always be sued with the appropriate nozzle gasket.

All KHOLEE BLAST nozzles including the long life, a choice of fine thread (1-1/4”, 32mm) or the coarse contractor thread (2”, 50mm) which provides quick release from the nozzle holder and avoiding grit entrapment. Optional on Aluminum outer jacket and PU outer jacket which protects the Venturi or Straight bore nozzle insert from damage.

TLVW-NP Series Nozzle
Model	Orifice	Length
TLVW-3NP	4.8mm (3/16”)	126mm (5”)
TLVW-4NP	6.4mm (1/4”)	140mm (5-1/2”)
TLVW-5NP	8mm (5/16”)	150mm (6”)
TLVW-6NP	9.5mm (3/8”)	180mm (7”)
TLVW-7NP	11mm (7/16”)	215mm (8-1/2”)
TLVW-8NP	12.7mm (1/2”)	230mm (9”)
TLVW-10NP	16mm (5/8”)	243mm (9-1/2”)
25mm (1”) or 32mm (1-1/4”) entry, long venturi nozzle, 50mm (2”) nylon contractor thread, urethane outer jacket, tungsten carbide liner.
