Shot Blasting Machine for LPG CNG Cylinders

Place Of Origin: China
Working Type: Wheel Blasting
Usage: Remov Rust, Oxide Layers
Blasting Abrasive： Steel Shots & Grits
Product description：Kholee Blast designs and manufactures high quality shot blasting machines for LPG cylinder, gas cylinder, LPG cylinder. By shot blasting, it can remove rust, oxide layers, paint films before powder co
INQUIRY

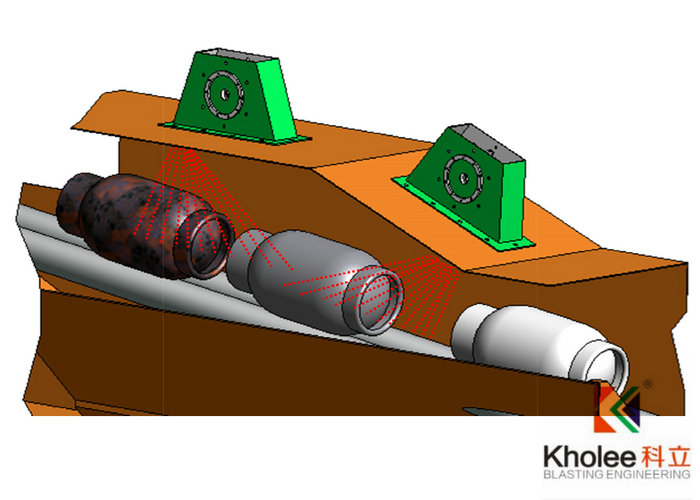

LPG Cylinder Shot Blasting Machine is used to automatically clean the surface of the LPG / CNG cylinders by blasting of abrasive coming from blasting turbines. The steel cylinders get shot blasted as they pass through the blasting chamber. The cylinders also get rotated on the rollers as they pass through to ensure the cleaning of the complete surface.

LPG / CNG Cylinder Shot Blasting Machine is comprised of

1) Shot Blasting Chamber

2) Shots Recycle System including screw conveyor, bucket elevator and air wash separator

3) Blasting Turbine

4) Steel Cylinder Moving and Rotating System

5) Dust Removing System including pulse jet dust collector and centrifugal air fan

6) Electrical Control System

Steel Cylinder Shot Blasting Machine
Model	KLGP300-2	KLGP400-2	KLQG484-4
Size of Steel Cylinder	2.2kg, 5kg, 10kg, 13kg, 15kg, 20kg 45kg
Productivity	80 ~100 pcs/hr	160~200 pcs/hr	160~200 pcs/hr
Blasting Turbine	7.5kw × 2	15kw × 2	11kw × 4
Shots Recycle System	15 t/hr	30 t/hr	48 t/hr
Cylinder Transportation	Roller Conveyor		Overhead Conveyor
Dust Removing Air Volume	9000 m³/hr	12000 m³/hr	18000 m³/hr
Surface Quality after Blasting	Sa2.5 ~3.0
Total Power	28kw	50kw	75kw

Note:

- Kholee Blast also designs and manufactures non-standard steel cylinder shot blasting machine according to clients’ requirements and work-pieces size.

- We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.
