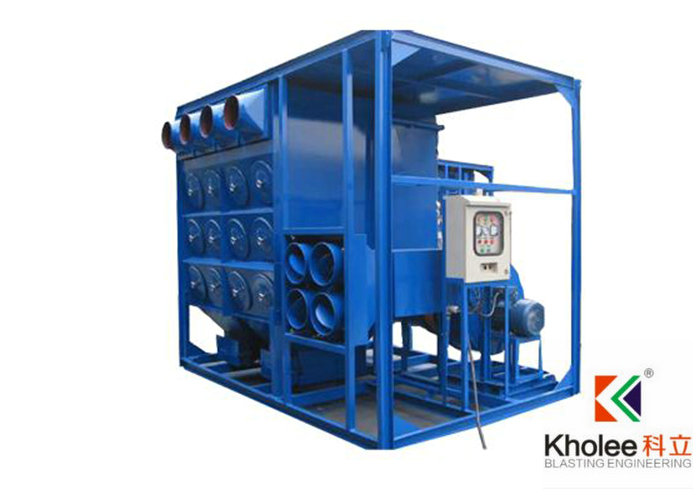

Compact, transportable, flexible and well designed - These are the main features of the KHOLEE mobile dust collection systems, either standard or designed specifically for the job on hand. A complete range of easy to transport filter units, cartridge or bag type for use on shipyards, bridges or for many other blast cleaning operations. Most popular sizes are suitable for 6000cbm/hr, 12000cbm/hr, 18000cbm/hr and 24000cbm/hr.
Operation Principle
Dust laden air enters through the inlet plenum of the collector, where heavy particles fall immediately into the hopper. As the air flows through filter cartridges, dust is deposited on the outside of the filtering media. The filter cartridges are cleaned automatically and continually without interrupting the operation of the dust collector. An adjustable timer controls the cycle-time.
Solenoid valves introduce jets of high-pressure air into each cartridges in turn, through venturi opening above each cartridge.
The resulting reverse airflow cleans the filter cartridges. Dust removed from the filter surface settles into the hopper. As each filter cartridges is cleaned in succession, the remaining stay in operation. Extremely high dust loading is handled easily.
Further complete with electrical panel with automatic switch controllers, main switch, signal lamps and control buttons for 1 ventilator and control unit for cartridge cleaning valves.
|
Portable Dust Collector - Pulse Jet |
||||||
|
Model |
KL-MDC6000 |
KL-MDC12000 |
KL-MDC18000 |
KL-MDC24000 |
||
|
Exhaust Capacity |
6000m3/hr |
12000m3/hr |
18000m3/hr |
24000m3/hr |
||
|
Air Pressure |
2000 Pa |
2000 Pa |
2000 Pa |
3000 Pa |
||
|
Electrical Motor |
7.5kw |
15kw |
22kw |
30kw |
||
|
Power Voltage / Frequency |
440V/415V/380V ~ 50Hz/60Hz |
|||||
|
Filter Cartridge Qty |
6 pcs |
12 pcs |
18 pcs |
24 pcs |
||
|
Filter Area |
126 m2 |
252 m2 |
378 m2 |
504 m2 |
||
|
Filter Cartridge Material |
Polyester Fabric or Cellulose Fiber |
|||||
|
Filter Percentage |
99.9% |
|||||
|
Max Dust Emission |
≤ 80 mg/cbm |
|||||
|
Air Inlet Connection Size |
Φ300mm × 1 |
Φ300mm × 2 |
Φ300mm × 3 |
Φ300mm × 4 |
||
|
Compressed Air Pressure |
Continuously by compressed air @ 0.6Mpa, 1.5m3/min |
|||||
|
Pulse Valve Qty |
2 pcs |
4 pcs |
6 pcs |
8 pcs |
||
|
Cycle Time |
Adjustable by Pulse Controller |
|||||
|
Sequence |
3 filter cartridge simultaneous |
|||||
|
Examine Door |
1 pc |
2 pcs |
||||
|
Weight |
≤ 1200 kgs |
≤ 2000 kgs |
≤ 3000kgs |
≤ 3500kgs |
||
|

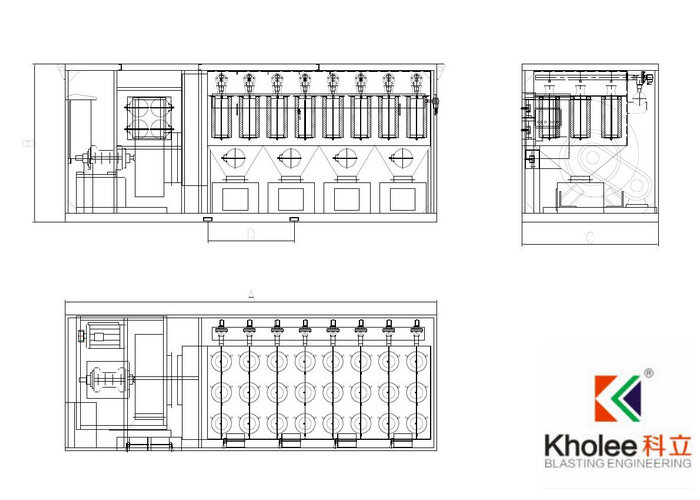

Equipment Size L×W×H |
2300×1500 ×2400mm |
4000×2200 ×2500mm |
5000×2200 ×2550mm |
6000×2200 ×2550mm |
||
|
Enclosure Structure |
Mobile Containerized Structure |
|||||
- Kholee Blast also designs and manufactures non-standard mobile dust collector according to clients requirements and work-pieces size.
- We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.
