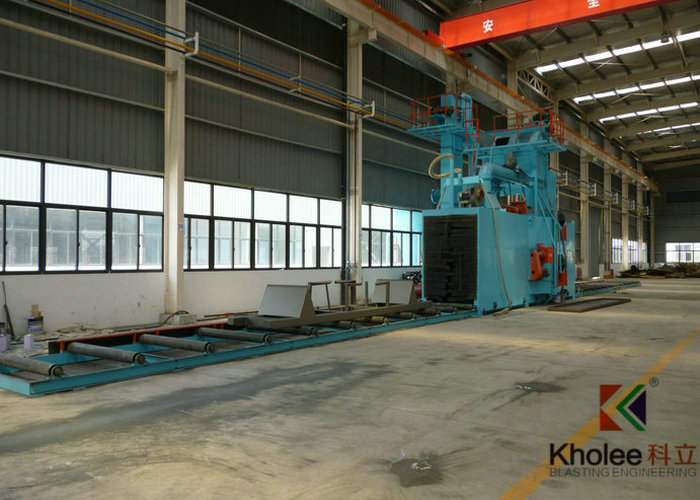

KLH1323-10 roller conveyor Shot Blasting Machine is used to clean H beam, box beam, big steel structure, pipe, steel plate etc. in PEB structure manufacturing workshop. It adopts advanced blasting turbine to do blasting to all the surface of steel and remove rust, oxide layers, welding slag. After blasting, it gets clean surface Sa2.5 with certain roughness which improves the paint film adhesion, anti-fatigue and anti-corrosion, prolong the service life of steel. It is widely used in the industry of steel structure, ship building, engineering machinery & bridge construction etc.
The equipment is comprised of in-feeding roller conveyor, shot blasting chamber, blasting turbine, shots recycle system, dust removing system, out-feeding roller conveyor and electrical control system etc.
KLH1323-10 roller conveyor shot blasting machine adopts no foundation pit design. It will save a lot of investment in foundation pit construction. The investment for shot blasting machine includes equipment value and foundation pit construction cost. If the equipment adopts no pit design, it will save investment for foundation construction.
|
Size of Blasting Jobs Max Size |
Steel Structure / H Beam |
1,300×2,300×15,000mm |
|
Weight |
15,000kgs |
|
|
Blasting Chamber |
Open Size |
1,500×2,500mm |
|
Chamber Length |
10,000mm |
|
|
Main blasting chamber is protected By Cr13 Wearing Resistance Plate Liner service life: opposite blast wheel ≥ 4,000hrs Other Parts ≥ 10,000hrs |
||
|
Working Speed |
0.5~2.5 m/min |
|
|
Model |
S390/1.2mm |
|
|
Initial Input |
4000~6000kg |
|
|
Provided by the client |
||
|
Blasting Wheel - Direct Coupling |
Model |
KLQ350D |
|
Quantity |
10 sets |
|
|
Rotating speed |
2930rmp |
|
|
Shot blasting capacity |
200 kg/min ×10 |
|
|
Power |
11kw × 10 |
|
|
Service Life |
Blades ≥1000hrs Impeller ≥ 2000hrs Control Cage ≥ 2000hrs |
|
|
In-feeding Roller Conveyor |
Loading Capacity |
1,500 kg/m |
|
Space Between Rollers |
1000mm |
|
|
Length |
15,000m |
|
|
Power |
4 kw |
|
|
Out-feeding Roller Conveyor |
Loading Capacity |
1,500 kg/m |
|
Space Between Rollers |
1000mm |
|
|
Length |
15,000m |
|
|
Power |
4 kw |
|
|
Portrait Screw Conveyor - With checking device |
Delivery capacity |
120 t/h |
|
Power |
7.5kw |
|
|
Quantity |
1 sets |
|
|
Transverse Screw Conveyor - With checking device |
Delivery capacity |
120 t/h |
|
Power |
5.5 kw |
|
|
Quantity |
1 set |
|
|
Bucket Elevator |
Lifting capacity |
120 t/h |
|
Power |
11 kw |
|
|
Quantity |
1 set |
|
|
Shots-Dust Separator Air Wash Type - With checking device |
Separating capacity |
120 t/h |
|
Air speed in separating area |
4~5 m/s |
|
|
Power |
5.5 kw |
|
|
Pneumatic Shots Supply Valve |
Compressed Air Pressure |
0.4~0.6 Mpa |
|
Quantity |
10 pcs |
|
|
Cyclone Dust Collector |
Diameter |
Φ1500mm |
|
Qty |
1 set |
|
|
Pulse Jet Type Dust Collector - With Fast Replacement Technology |
Model |
KL-DC-32 |
|
Cartridge Filter |
Φ325 × 1100mm |
|
|
Cartridge Filter Quantity |
32 pcs |
|
|
Dust Cleaning Type |
Pulse Jet |
|
|
Dust Emission Density |
≤80 mg/m3 |
|
|
Air Volume |
32,500 m3/hr |
|
|
Centrifugal Air Fan |
30 kw |
|
|
Quantity |
1 Set |
|
|
Electrical Control System |
Voltage/Frequency |
380~415V/50Hz/3Ph |
|
Operation Type |
Manual + PLC control |
|
|
Equipped with China Famous Brand Elements Such as CHINT Mitsubishi |
PLC, breaker, contactor, time relay, thermal relay, button, switch etc. Interlock safety control |
|
|
Total Power |
About 178kw |
|
|
Overall Size of Machine |
About L 40,000× W 6,000× H 7,500mm |
|
|
Accessories |
Free Spare Parts |
Blade 10 sets |
|
Impeller 10 pcs |
||
|
Control Cage 10 pcs |
||
|
Installation Instruction Book 1pc |
||
|
Operation & Maintenance Book 1pc |
||
|
Electrical Diagram 1pc |
||
|
Blasting Turbine Instruction 1pc |
||
