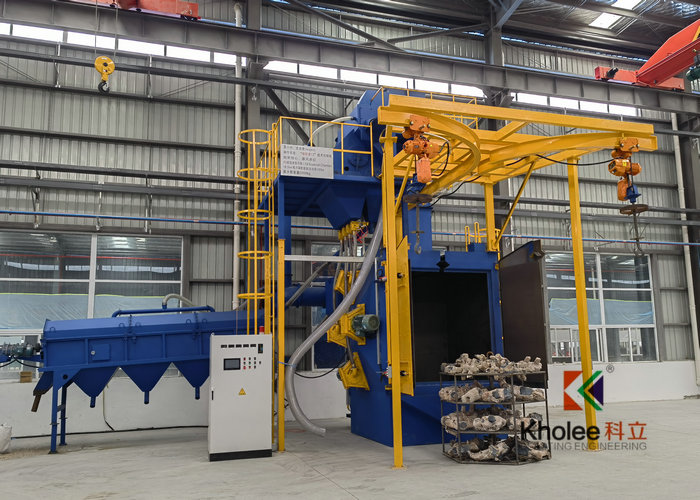

KLCN-H2D1T1214 Shot Blasting Machine for Investment Casting Shell Removal

Place Of Origin: China
Working Type: Wheel Blasting
Usage: Casting Shell Removal
Blasting Abrasive: Steel Shots
Product description：KLCN-H2D1T1214 Shot Blasting Machine is used to remove investment casting shell & insulation, casting sand. It is widely used in precision casting, investment casting, sand casting, lost wax casting w
INQUIRY

There are many methods of removing casting shell, insulation and sand from casting products including impact, water-jetting, shake, shot blasting etc. Shot blasting is a surface treatment process using high velocity metal abrasives to impact the surface of metal products, which can obtain excellent cleaning and surface preparation.

KLCN-H2D1T1214 Shot Blasting Machine for casting shell removal includes shot blasting chamber, blast wheel (high velocity type), work-piece lifting system, vibrating conveyor, bucket elevator, magnetic separator, air wash separator, dust collector, Vibrating Screen Separator & electrical control system.

Shot Blasting Used for Casting Shell Removal in precision casting, sand casting, lost wax casting, invvestment casting

● Remove Sand from Casting

● Remove Casting Shell & Insulation from casting

● Prepare Surface for coating, cutting, maching etc

In general, shot blasting concentrates metal abrasive at high speed (80~110m/s) at the surface of casting thereby remove casting shell due to the metal abrasives strong impact.

System features & benefits by shot blasting for casting shell removal from Kholee Blast

● Shorten Work Process Flow: no need manual shell removal or shakeout

● Reduce Loss of Steel Shots

● Reduce Labor Cost for Cast Shell Removal

● Save Electrical Energy

● Reduce repair cost compared with traditional shot blast m/c

● Reduce blast cleaning time & improve productivity

● Save Operation Cost & improve production profits: compared with traditional work process flow, the shot blasting machine from Kholee Blast special for casting shell removal will save operation cost. All cost related to new technology of blasting from Kholee Blast will be around USD100,000.00~ USD120,000.00 based on casting production 15tons/day. (When labor cost and material cost are different, the result will be different).

KLCN-H4D2T1214 CASTING SHELL REMOVAL shot blasting machine
Size of Blasting Jobs	Max Size	Φ1,150× H1,350 mm
Size of Blasting Jobs	Max Weight	1,000KG
Blasting Chamber	Size	1,600×1,600×1,900mm
	Leg Height	1,550mm
	The whole blasting chamber is made Mn13 steel plate bending and welding together, blasting hot spot area is protected by Cr18 wearing resistance plate liner again, hardness ≥65HRC.
Time Needed For Casting Shell Removal	Precision Casting	10~15 min
	Sand Casting	3~5 min
	Lost Wax casting	6~10 min
Automatic Entry & Exit Door	Equipped With Pneumatic Cylinder Protected by Mn13 steel plate liner
Blasting Wheel - Direct Coupling	Model	KL-CN18
	Shot blasting capacity	250 kg/min ×2
	Power	15kw ×2
	Blade Service Life	2 years / 2000 working hours
‘Y’ trail Spinner Hanger Lifting System	Trail type	‘Y’ trail
	Hoist quantity	2 pcs
	Loading capacity	1000 kg
	Self-Rotating power	0.55kw
Vibrating Conveyor For big shell separating	Delivery capacity	30 t/h
Vibrating Conveyor For big shell separating	Power	0.55kw ×2
Bucket Elevator - With checking device	Lifting capacity	30 t/h ×1
Bucket Elevator - With checking device	Power	4 kw
Abrasive - Shell Separator Magnetic + Air Wash Type	Separating capacity	30 t/h
	Function	Separating shell powder and metal abrasive completely
	Rotary Magnetic	2.2kw×2
	Air speed in air washing area	4~5 m/s
Bag Filter Dust Collector - Online Pulse Jet Cleaning	Model	KLCN-DC-96BF
	Bag Filter	Φ130 × 1500mm
	Bag Filter Quantity	96 pcs
	Air Volume	12,500 m³/hr
	Centrifugal Air Fan	11 kw
Vibrating Conveyor For Separating Different Size of Powder	Power	0.55kw × 2
	Shell Powder Size	< 60 #
		30~60 #
		16~30 #
		>16 #
	Powder Shell Storage	4 Boxes
	Qty	1 Set
Electrical Control System	Voltage/Frequency	380V/50Hz/3Ph
Electrical Control System	Operation Type	Auto + Manual control
Total Power	~ 56kw
Overall Size of Machine	6500mm×6500mm×7500mm
