KL-STR-13MRC Dustless Vacuum Blaster with Magnetic Robotic Crawler

Place Of Origin: China
Working Type: Air Blasting
Abrasive Recycle: Roots Blower
Usage: Remov Rust, Oxide Layers, Paint Film
Product description：KL-STR-13MRC vacuum blaster with magnetic robotics crawler is mainly used to shipbuilding and repair, petrochemical tank manufacturing and maintenance, port machinery manufacturing, big steel bridge s
INQUIRY

KL-STR-13MRC vacuum blaster with magnetic robotics crawler is mainly used to shipbuilding and repair, petrochemical tank manufacturing and maintenance, port machinery manufacturing, big steel bridge surface preparation and coating, wind tower construction etc.

The magnetic robotics crawler adopts remote control, carries blasting tools and realizes crawling operations on the surface of work-pieces. It can walk as walking on flat ground and operate automatically at a height of tens of meters.

● A special operation robotics integrated with multidisciplinary such as mechanic, control, sensing and algorithms etc.

● The magnetic robotics crawler adopts low-voltage drive,safe and reliable;

● Linear movement by magnetic robotics crawler, programmed control;

● It can equipped with variety tool system to do multi-jobs.

● Industrial screen display, remote control, under operators control easily.

● The magnetic robotics crawler can climb at complex surface, cross obstacles as walking on ground.

Magnetic Robotics Crawler
Main Electrical power	AC 220V
Robotics Electrical Power	Low Voltage, DC 48V
Robotics Power	1300W
Weight	80kgs
Loading	70kgs
Assembly	High strength magnetic absorption, quick assembly
Climbing Speed	0~10m/min
Control Type	Wireless Remote Control Manual Click Start Manual Continuous Start Auto Cruise Control
Working Type	Horizontal, Inverted, Vertical, Curved
Blasting Head Movement	Linear movement, reciprocating width 1000mm
Control Type	Electrical Control, Center and Speed adjustable
Hose Length	≤ 60m

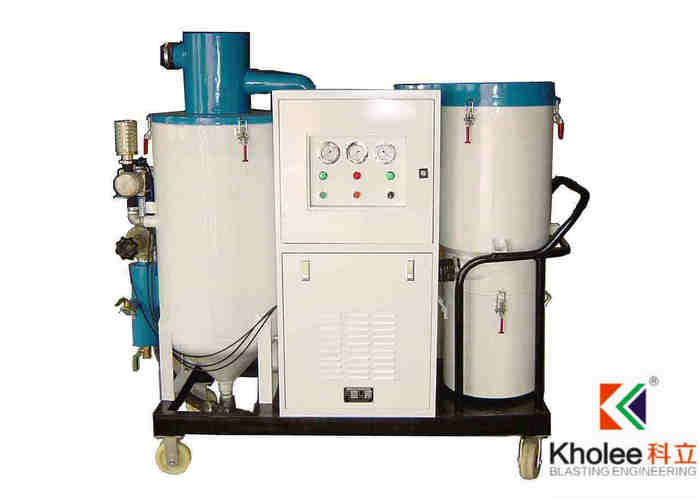

Dustless Vacuum Blaster
Vacuum Blaster	Abrasive auto recovery and recycle, no dust produced
De-rust Grade	Sa2.5~Sa3.0
Abrasive Used	Brown aluminum oxide, Garnet, Sand, Steel Grits etc.
Blasting Working Efficiency	≥ 8~15m²/hr/Nozzle
Compressed Air Consumption	≥ 6 m³/min / Nozzle, 0.6Mpa
Electrical Power	380V/50Hz/3Ph
Blasting System
Blast Pot Type	Dual Tank, Continuous Working
Tank Size	Φ800×1700mm, 0.6m³
Abrasive Feeding Required	Approx. 500kgs
Feeding	Level Sensor Control, Auto Feeding
Control	Electrical & Pneumatic Control To start and stop blast process
Abrasive Control Valve	Pneumatic Abrasive Control Valve
Blast Hose	32×16mm, working radius 10~60m, rubber sand blast hose
Recovery Hose	10~60m, ID 75mm, PVC Grit Hose
Blast Head	Nozzle, boron carbide 80×20×10mm Inner angled brush to clean curved plate Outer angled brush to clean curved plate Flat Brush to clean flat plate
Separator	Cyclone Separator, 1 unit Diameter Φ800mm High Efficiency Separating
Vacuum Pump	22kw, 380V/50Hz
Dust Collector	Pulse Jet Dust Collector
Cartridge Filter	Φ360×660mm, 7.5m²/pc×2, 2 pcs
Dust Emission Density	≤ 100mg/m³
Electrical Control	380V/50Hz Centralized Control Panel Schneider & CHINT electrical elements Delta-Star Start for fan Including electrical control cabinet & wire cables Low Voltage, Thermal Relay to protect all motors Short protection Overload protection Grounding
Size of Vacuum Blaster	1980×1000 ×2300mm
