KL-PSF150706WF Blasting Room With Waffle Floor Abrasive Recovery System

Place Of Origin: China
Working Type: Air Blasting
Usage: Remov Rust, Oxide Layers
Blasting Abrasive：Steel Grits
Product description：Blast Room with Waffle Floor Abrasive Recovery System from Kholee Blast requires no mechanical recovery systems such as screw conveyors, bucket elevators etc. which are subject to high wear. Steel Sho
INQUIRY

Shot blasting is one key technology of surface finishing in the industries of shipbuilding, steel structure, pressure vessel, pipelines, heavy engineering machinery etc. The productivity efficiency of shot blasting equipment directly affects producing period; The coating quality directly affects the product service life.

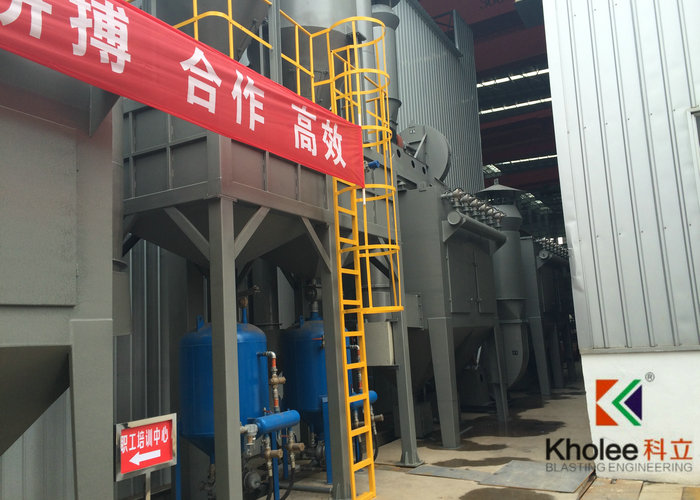

This blasting booth adopts waffle floor to recovery abrasives. It uses high pressure air as power to reclaim abrasive from blasting booth, then delivery abrasives into separating system through pipes. All separating, abrasive recycle and delivery adopt pneumatic delivery. it doesn't need to use bucket elevator, air wash type separator etc.. A complete air recovery blasting room is made of blasting working booth, shot blasting system, waffle floor, recovery separating system, dust removing system, electrical control system, protective wearing for workers, trolley system and so on.

Performance:

- It adopts large power air fan to provide air power for blasting room. The air power will reclaim the mixture of abrasives and dust through waffle floor. Because the air flow goes top-down, the dust will be descent down to the floor. Thus it can provide good working conditions and visibility for workers.

- It doesn't need dig pitch or dig shallow pitch and can reduce construction task, thus it can reduce invest amount. The frame of blasting room adopts steel structure; the outer of room adopts color steel plates; the sandwich adopts special quieter materials. It can reduce noise and control the noise level under 80db(A).

- The compressed air pressure is 0.8Mpa; the de-rusting grade is Sa2.5~3; the dust emission density is ≤30mg/m³; the illuminance is ≥300Lx.

- It adopts large volume sand/grit blasting machine, auto abrasive input system and can improve the efficiency by 40%~45%.

- The blasting nozzle quantity is determined by the blasting area per hour provided by customers.

- It adopts advanced pulse jet cartridge filter dust collector and has the advantages of high efficiency of dust removing, long life service and dust emission density less than 30mg/m³.

- It adopts complete sets of blasting protective wearing.

-The disadvantage of waffle floor type blasting booth is that it has large electrical power consumption.

Electrical Power Voltage/Frequency	Motor	380V~415V/50Hz/3Ph
Electrical Power Voltage/Frequency	Control	220V/50Hz
Size of Blasting Jobs	Max Size	12,000×4,500×4,000mm
Size of Blasting Jobs	Max Weight	10 tons
Blasting Room	Door Open Size	5,000×5,000mm
Blasting Room	Room Size L × W × H	15,000×7,000×6,000mm
Blasting Productivity	Portable Blasting Machine	KLSC-600-1R
	Blasting Pot Size	Φ600×1400mm, 0.27m³
	Working Time / Day	8 hr.s
	Blasting Nozzle/ Φ10mm	2 units
	Blasting Area per day	15~35m²/hr×2×8hr.s=240~560m²
Surface Quality After Blasting	Grade	Sa 2.5
Surface Quality After Blasting	Roughness	45µm～75µm
Steel Grits	Size	GH40/0.8mm
	Initial Input	5,000~10,000 kg
	Provided by the client
Abrasive Recycle Type	- Auto Waffle Floor Recovery System: 500×620mm, 3 roads - Capacity: 5~10tons/hr - Recovery Area: about 95m² - Gratings to support blasting man - Screen to filter abrasive
Dust Removing System I for Blasting Room	Air volume	38202m³/hr
	Power	37kw
	Pulse Jet Dust Collector	KL-DC4-48
	Filter Cartridge material	Nano Film Fiber
	Filter Cartridge Size	Φ350×660mm, 23m²/pc
	Filter Cartridge Qty	48 pcs
	Dust Emission Density	≤30mg/m³
Dust Removing System II for Abrasive Recycle	Air volume	7766~8819m³/hr
	Power	30kw
	Pulse Jet Dust Collector	KL-DC3-15H
	Filter Cartridge	High Pressure
	Filter Size	Φ325×1000mm, 16m²/pc
	Filter Cartridge Qty	15 pcs
	Dust Emission Density	≤30mg/m³
Non-Power Trolley	Table Size	2500×4000mm
	Height	630mm
	Loading Capacity	10 tons
Noise Level	≤85dB
Illuminance	≥300Lux
Total Power	About 70kw
Size of Equipment	Refer to Drawing
