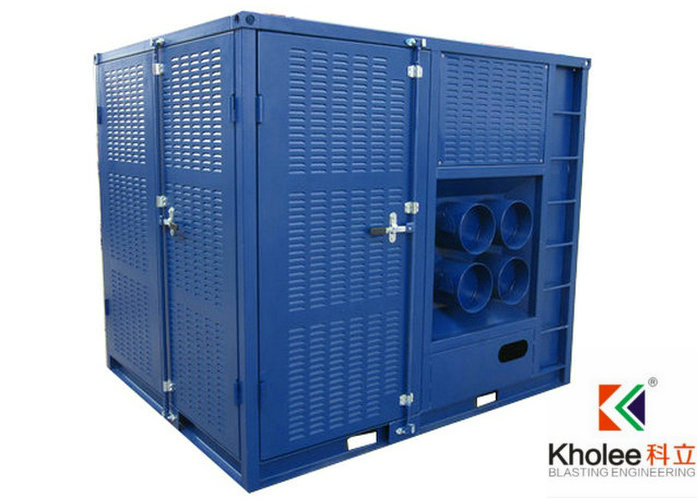

Kholee Portable Air Cooling Unit is engineered specially for use in equatorial and tropical climate conditions or in Summer of temperate regions.
The system has the following usages:
- To reduce temperature of a chamber as to satisfy technical requirements and improves working efficiency
- An effective ventilation method to reduce toxic/hazardous gas for prevention of accident occurrences.
- Its cooling effect improves working environment, and enhances working productivity.
- The unit comes complete with a specially designed control panel and can be easily transported by cranes or forklift.
|
PORTABLE AIR COOLER / AIR COOLING UNIT |
||
|
Model |
KL-LFC6000 |
KL-LFC12000 |
|
Process Airflow (m3/hr) |
6000 |
12000 |
|
Compressor Power (kw) |
13 |
23 |
|
Process Air Fan (kw) |
4 |
11 |
|
Refrigerating Power (kw) |
46 |
92 |
|
Refrigerant |
R22 FREON |
|
|
Evaporator |
Copper Tube + Aluminum Fins |
|
|
Condenser |
Copper Tube + Aluminum Fins |
|
|
Outlet connection (mm) |
Φ250×2 |
Φ250×4 |
|
Total Power (kw) |
20 |
37 |
|
Equipment Size (mm) |
1400×1400×2250 |
2200×1400×2260 |
|
Weight (t) |
2.2 |
3.1 |
|
Machine Structure |
Movable Containerized |
|
|
Temperature Control Type |
Temperature Display + Control |
|
|
Air Intake Condition |
Temperature: 20~40°C |
|
|
Max temperature reduce |
≤12°C |
|
|
Air Discharge Pressure |
≥ 1000Pa |
|
NOTE:
1. Power supply: 3-phase plus earth 380V/ 415V / 50 Hz
2. Refrigerant: R22 / FREON
3. Cooling Media: Air
4. TEMPERATURE REDUCED: 8~12°C
5. We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.
