Black Varnish Painting Production Line for Oil Casing Tube

Place of Origin: China
Painting: Airless Spray Painting
Control Type: PLC control
Machine Use: to paint primer, oil paint etc

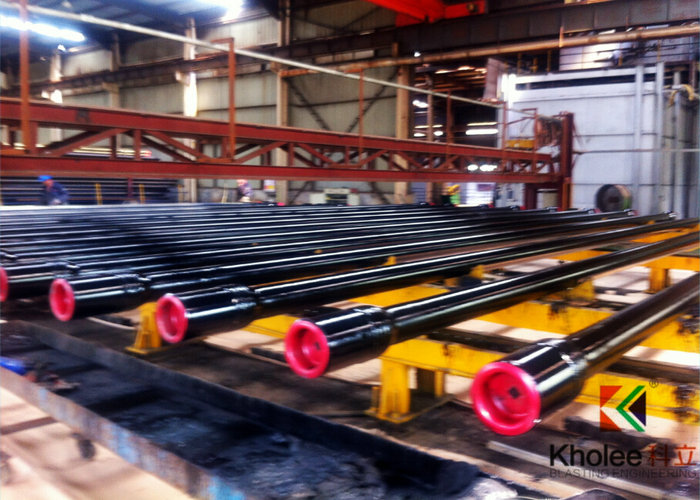

Product description：Black Varnish Painting Production Line from Kholee Blast is used to do anti-corrosion black varnish paint on oil casing tubes. By black varnish paint, the oil casing will be free from corrosion during
INQUIRY

The steel tube auto airless painting production line adopts airless paint sprayer to painting steel tube. It is widely used in the industries of boiler, chemical industry, petroleum industry, shipbuilding, marine industry etc.

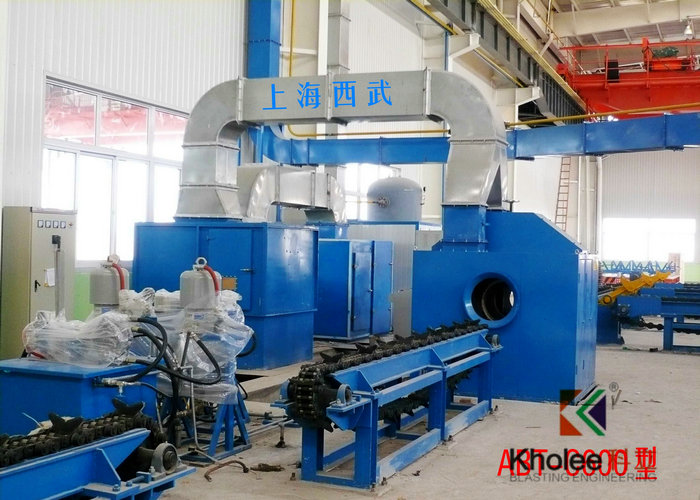

The equipment is comprised of high pressure airless paint sprayer, oil recycle pump system, painting spray chamber, special designed combined spray gun, water curtain paint mist purifying system, electrical control cabinet etc.

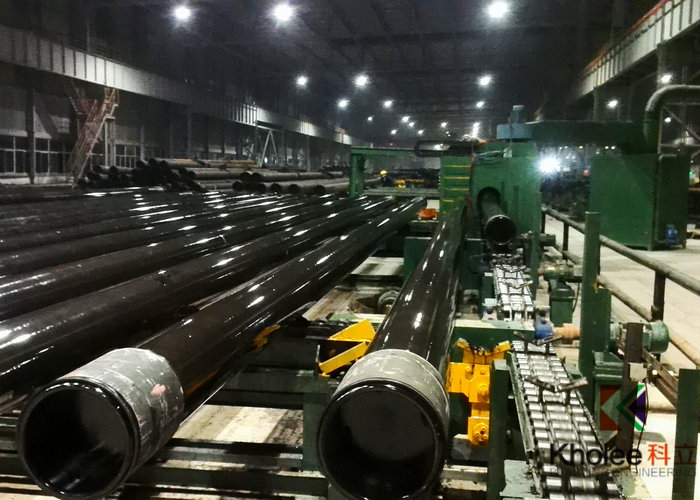

Work process flow: The steel tube will be delivered by in-feeding slat conveyor to painting spray chamber. There is a sensor system which will detect the steel tube and send signal to electrical control system. The electrical control system will start airless paint sprayer and improve pressure of oil paint to 32:1/45:1/69:1 and spray paint to steel tube. After painting, the steel tube will be sent out to out-feeding slat conveyor, then to air drying bed for drying.

Steel Pipe Auto Airless Painting Production Line
Equipment Model	KL-ABT-C600
Working Type	High Pressure Airless Painting
Application Industry	Oil casing tube, oil tube, drilling pipe, square tube, rectangle tube, seamless steel tube and ERW tube
Size of tube	Steel tube	Φ60.32~339.7mm
	Square/Rectangle tube	38~120mm
Spray Gun Type	Combined Type Spray Gun
Characters of spray gun	Self-cleaning function
Qty of spray gun	4~10 sets depends on the size of tube
Paint Pump	- High pressure airless paint sprayer, 3 sets - Oil Pump, 1 set
Painting Productivity	1~3 pcs/min
Auxiliary Device To form production line with steel tube auto airless painting machine	In-feeding slat conveyor before painting Out-feeding slat conveyor after painting Steel Tube/Pipe pneumatic turning device WHISTON Turing Device Air drying bed Auto Length measuring & weighing stencil system Auto Steel Tube Mark Printing Machine Stepping Moving Mechanism PLC Electrical control system
