Abrasive Blast Cabinet

Place Of Origin: China
Working Type: Air Blasting
Usage: Remov Rust, Oxide Layers, Paint Film, Deburring
Control Type: Manual
Product description：Kholee Blast provides all kinds of cheap abrasive blast cabinets for sale, fast delivery. More information, contact us by email kholeeblast@gmail.com
INQUIRY

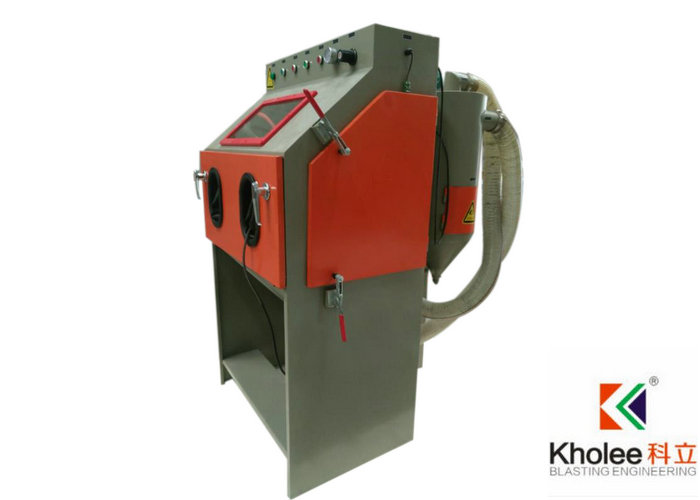

Kholee Blast offers manual drying abrasive blast cabinet, which is used to remove rust, oxide layers, paint film from castings, welding parts, heat treatment parts and improve roughness.

Character

- Special design and easy operation

- Auto abrasive recovery, good air discharge and high temperature resistance.

- According to the requirements of dies/mold, the blasting strength can be adjusted.

- Key parts adopts imported material, long life service

- Cyclone separator which can separate dust and sand efficiently.

- Electroplating, spraying process, improve adhesion; all kinds of mold, casting parts, metal, nonmetal surface heat treatment, to oxide skin, to residue, rust, oil, refurbished; all ceramic products, glass products, plastic products, light act the effect!

Application

- Clean oxide layers, burr and welding slag from heat treatment parts, welding parts, casting. The surface quality can reach sa3.0 after blasting.

- Clean small burr and residues on machining parts

- Do pre-treatment to parts before coating, which can improve adhesive of coating film.

- Improve physical and mechanical properties such as surface stresses, lubricating conditions of mating parts

- Improve roughness, finishing processes

- Surface peening and eliminate stress

- Renew old parts

- Clean mould/die, no damage to the surface of mould/die, guarantee precision of mould and improve products grades.

Manual Dry Sand Blast Cabinet\| Sand Blaster\| Sand Blast Machine
Model	KL-BC9060	KL-BC9080	KL-BC1010	KL-BC1212	KL-BC1515
Working Cabinet Internal size(mm)	900×600×660	900×800×700	1000×1000×790	1150×1190×930	1500×1500×930
Whole Equipment size(mm)	900×1030×1560	900×1000×1900	1000×1540×1830	1200×1200×2200	1500×2000×2300
Dust Collector sizes(mm)	600×600×1680	600×600×1680	600×600×1680	800×800×1680	800×800×1680
Side door size(mm)	470×500	650×500	850×670	950×860	1250×1000
Front door size(mm)	895×355	900×380	1000×380	1200×400	/
Power	220V 50Hz	220V 50Hz	220V 50Hz	220V 50Hz	220V 50Hz
Machine Light	220V 13W	220V 13W	220V 13W	220V 13W	220V 13W
Separator motor	220V 50Hz 550W	220V 50Hz 550W	220V 50Hz 550W	220V 50Hz 550W	220V 50Hz 550W
Separator air volume	8.5 m3/min	8.5 m3/min	8.5 m3/min	8.5 m3/min	8.5 m3/min
Compressed Air	2-8bar	2-8bar	2-8bar	2-8bar	2-8bar
Weight	320kg	320kg	380 kg	400kg	600 kg
